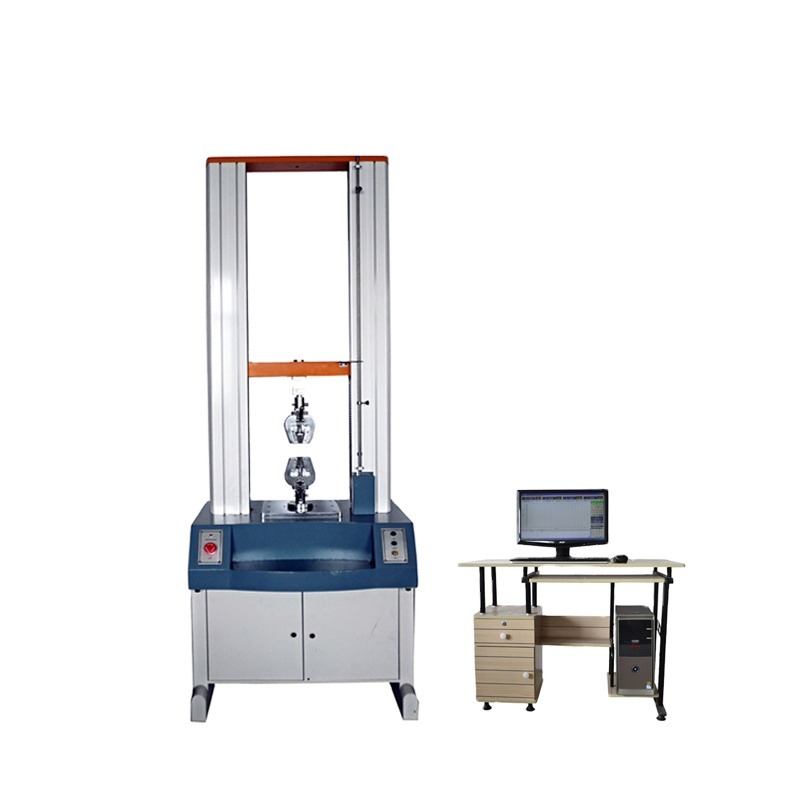

Rubber Tensile Testing Machine, Tensile Testing Equipment, Electromechanical Tensile Testing Machine

Applicable industry:

It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.

Main functions:

This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.

Corresponding standard :

GB/T16491-1996 electronic universal testing machine

items can be tested in the Computer servo testing machine:

Common items: ( display data and calculation )

1.tensile stress

2.tensile strength

3.tensile strength

4.rate of elongation at break

5.fixed stress

6.rate of stress at break

7.stress strength

8.tear strength

9.the value of force at any point

10.rate of elongation at any point

11.pull-out strength

12.force of adhesion and the peak of force

Software features:

A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification

B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.

C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)

D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

F. Test results can be output in EXCEL format.

G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.

H. Software has a capability that can output the before data.

1.Packaging List:

A. warranted book within one-year and operating instructions.

B. a group of fixture

C. testing software for tensile machine.

D. a set of brand computer, color printer
